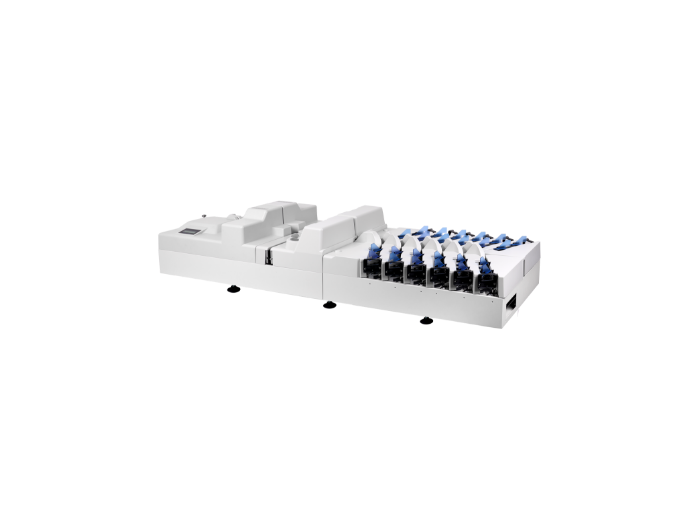

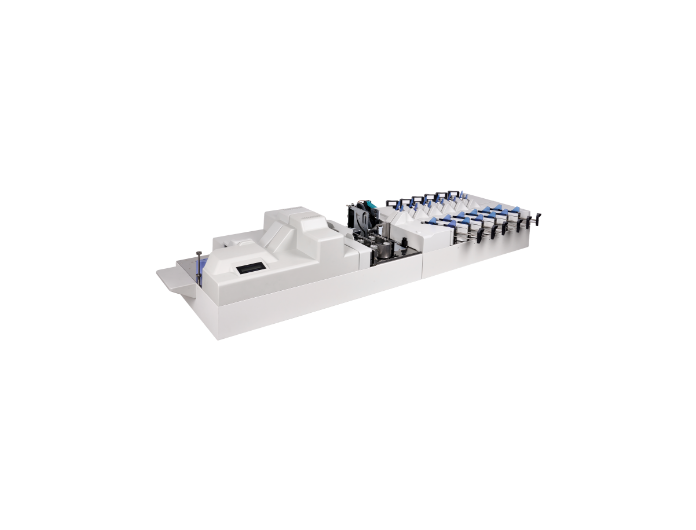

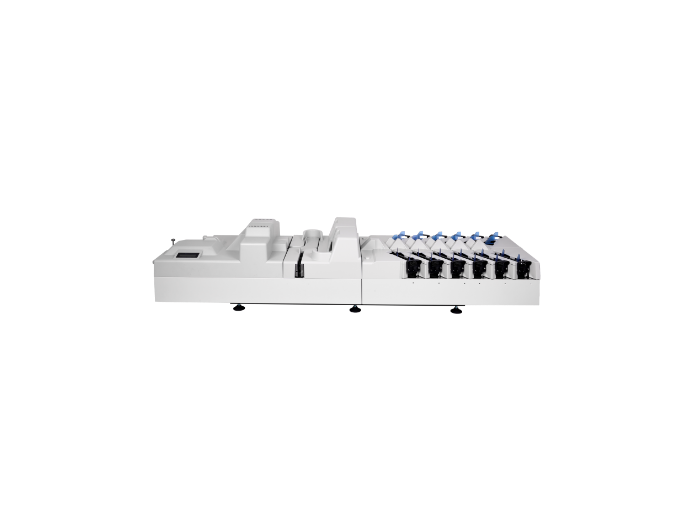

High Speed Reader & Sorter HDP-4500CU

The Gold Standard for High-Speed Reader/Sorters, Boasting Unrivaled Stability and Performance — The Ultimate Choice for Check Processing

This high-performance reader/sorter is engineered to quickly scan and sort various valuable documents, including checks and vouchers. It utilizes a high-resolution CIS (Contact Image Sensor) to support scanning a wide range of resolutions, from B/W up to 24-bit color images.

Boasting superior performance, this equipment is capable of high-speed scanning and sorting at up to 400 documents per minute (dpm). With the ability to process up to 1,000 documents in a single batch or continuously, it is perfectly optimized for environments requiring high-volume document handling.
It features standard MICR (E13B & CMC7) support for accurate check data recognition and also supports a TIJ 2.5 motorized inkjet endorsing function, enhancing both efficiency and accuracy. Highlighting its flexible scalability, the machine can be expanded from a minimum of 6 pockets up to a maximum of 36 pockets, satisfying diverse sorting requirements.

This reliable solution is already a trusted market standard, holding over 90% market share in Korean domestic banks and voucher processing sectors.

Features

High-speed reader/sorter for quick scanning and sorting diverse media, including checks and vouchers.

Supports various resolutions through the adoption of a high-resolution CIS (Contact Image Sensor)

Capable of scanning B/W images up to 24-bit color

Allows batch processing of up to 1,000 documents per session and supports continuous processing

High-speed scanning and sorting up to 400 documents per minute (dpm)

MICR Support: Standard capability for both E13B & CMC7

Supports TIJ 2.5 motorized inkjet endorsing functionality

Scalability: Expandable from a minimum of 6 pockets up to a maximum 36 pockets

Over 90% market share in the domestic banks and voucher processing sectors.

Specifications

Scanner
Image Sensor Dual CIS (Contact Image Sensor)
Resolution 100dpi, 200dpi, 300dpi
Image Depth B/W, 256gray, 24bit color
Light Source RGB+IR
Scan Width 140mm
Scan Speed Max 400dpm (check/duplex/gray/200dpi)
Scan Length 110mm ~ 225mm
Extra Length Scanning of check N/A
Image Compression bmp / jpg, tiff (compressed in PC)
MICR Reader
E13B 99.50%
CMC7 99.90%
Others
Hopper Capability Max 1,000 checks
Hopper Control Motor driven
Stack Capability Max 200 checks/pocket
Number of Pocket 6 pocket(Standard) Max to 36 pocket extension
Escape Pocket Yes (Double Feed, Skew, Long, Shot)
Reject Pocket Yes
DFS Yes (Ultra sonic)
Feeder type Automatic friction
Color drop Red/Green/Blue drop
Interface & Power
Communication High speed USB 2.0
OS Win 7, 10, 11 (32bit & 64bit)
Power Free Voltage (100V~240V, 50/60Hz)
S/W interface Hantle API
Physical
Dimension (6 Pocket Model) 406mm(W) X 300mm(H) X 1,314mm(L)
Weight (6 Pocket Model) 37kg (approx)
Option
Endorsement Yes(4 lines Inkjet) powered by motor driven with TIJ 2.5 Technology
Pocket Extension 6, 12, 24, 36 pockets available (on demand)
