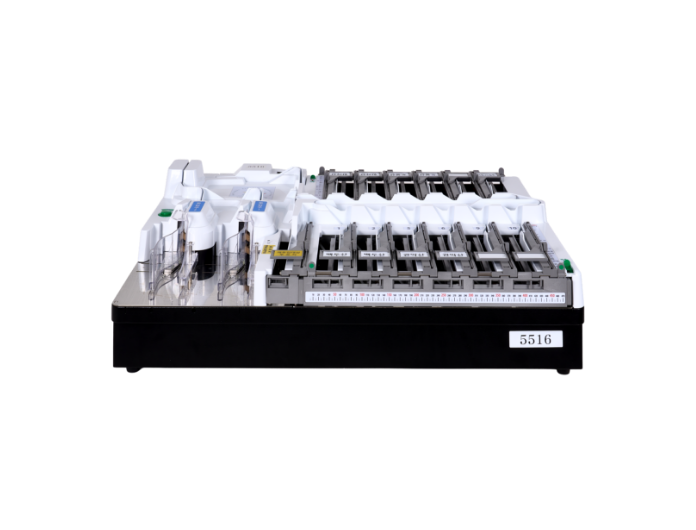

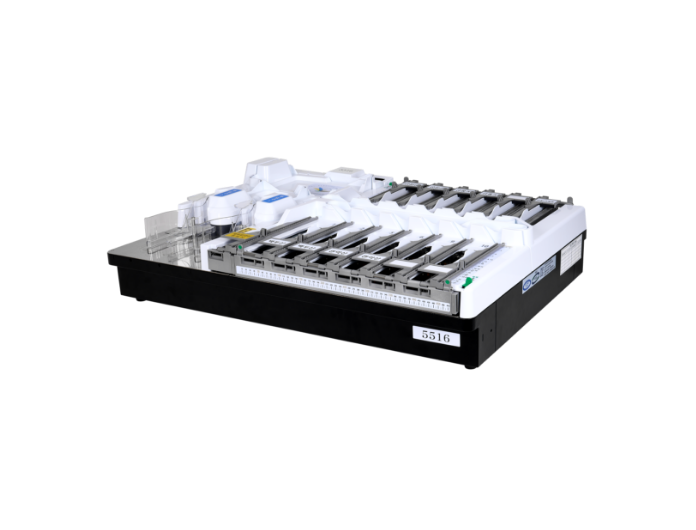

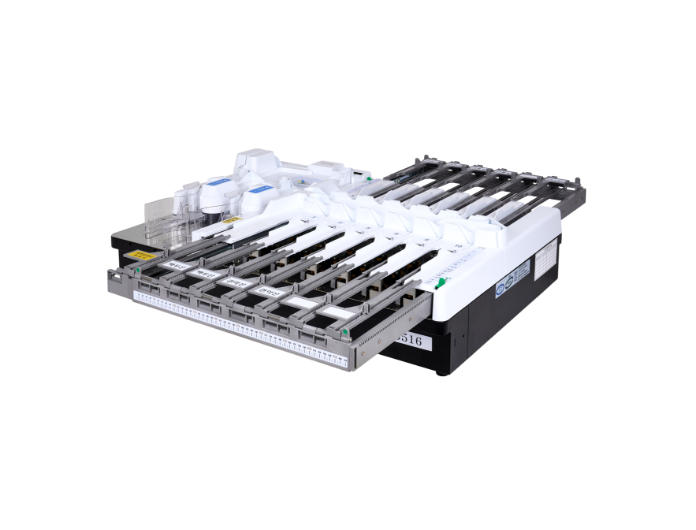

High Speed Ballot Sorter HDV-4500
The 4th generation high-performance ballot sorter that ensures secure and reliable ballot counting
HDV-4500 Series, the Ballot Counting & Sorting System is the standard for election-use ballot sorter in the Republic of Korea, maximizing space efficiency and user convenience by integrating sorting pockets, operating device (laptop), and printer into a single unified unit.
It processes documents at a high speed of 340 ballots per minute and is equipped with 12 sorting pockets along with a separate pocket for reprocessing ballots. The dual hoppers allow for continuous loading of up to 400 ballots each. The automatic hopper switching system ensures uninterrupted workflow, enabling the machine to handle large volumes of ballots efficiently.
Furthermore, it features an ultrasonic double-feed detection function to prevent paper feeding errors and includes an emergency stop button, allowing the operator to immediately control the device during operation. Notably, the system incorporates the proprietary CCRW technology to guarantee stable and efficient performance.
Features
Integrated system : Main Unit, Sorting Pockets, Operating Device(Laptop), and Printer all-in-one
High speed : 340 ballots per minute (based on 100x205mm size)
Sorting capacity : 12 Pockets (with a separate pocket for reprocessing ballots)
Dual Hopper capacity : Continuous loading possible with Dual Hoppers (each capable of max 400 ballots)
Automatic feed switching : Automatic Hopper Changeover System
Control feature : Equipped with an Emergency Stop Button
Reliability : Ultrasonic Double-Feed Detection Function
Specifications
| Ballot Sorter | |
|---|---|
| Configuration | Sorter, Controller, Printer Integral Type |
| Speed | 340 Ballot/min (100*205mm) |
| Interface | USB2.0 / USB3.0 (for Backup) |
| Image sensor | CIS(Front) / 100dpi 24bit color |
| Scan area | Min 100*155~350mm |
| Double Feed Detection | Ultrasonic sensor |
| Ballot Hopper | 2 Hoppers / Auto Select (400 Ballet per Hopper, max800) |
| 12 (max 100 Ballot per pocket) + 1 (Escape pocket) | |
| Controller | |
|---|---|
| Controller | 13.3 inch Touch screen |
| CPU | Intel i5 |
| Storage | 256GB SSD |
| Wifi/Bluetooh | N/A (Physically erased) |
| OS/SW | Windows10 64bit + OCR engine |
| Printer | |
|---|---|
| Printer Type | Inkjet |
| Printing Paper | A4 (normal copy paper) |
| Storage Bag | |
|---|---|
| Physical | Reinforced PP |
| Mobility | 4 Moving Wheels (max 200Kg) |
| Convenience | Built-in Carrying Handle |
| Physical | |
|---|---|
| Dimension | 880*580*270mm(Ballot Sorter) |
| Weight | Approx 41Kg (Ballot Sorter) Approx 15Kg (Stroage bag) |
