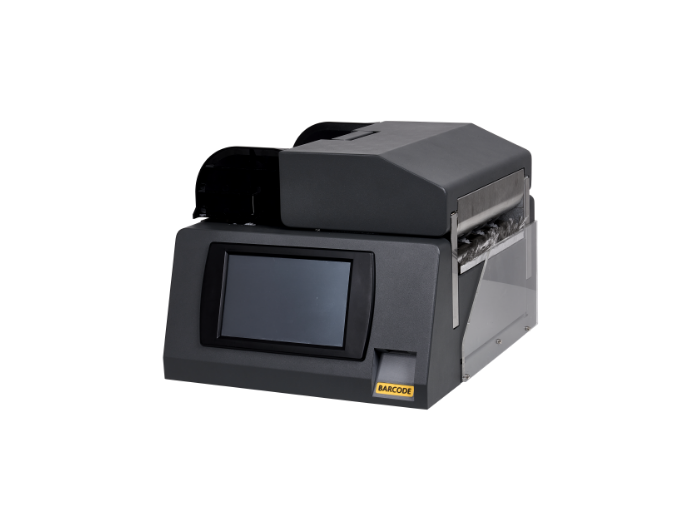

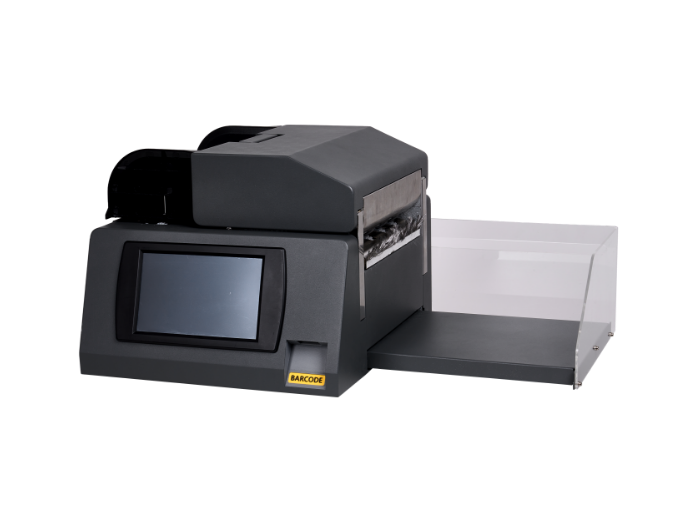

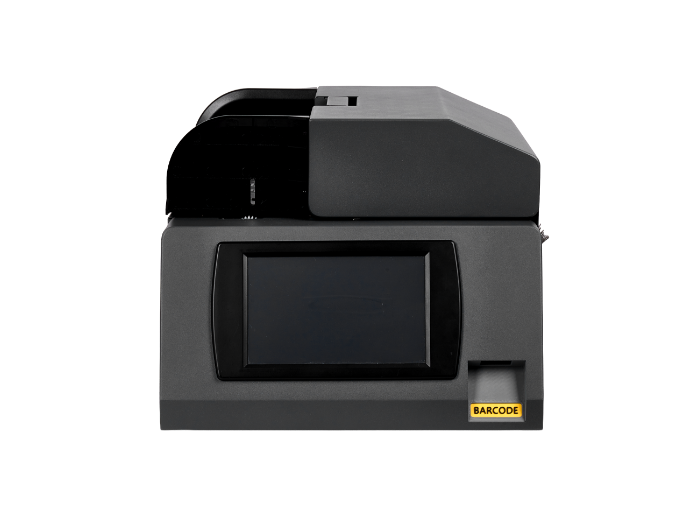

Envelop Reader & Scanner HERM-3000
2nd Generation Mail-in Ballot Reader & Scanner
This product is the 2nd Generation Mail-in Ballot Reader & Scanner optimized for pre-election envelopes. It features automatic envelope feeding, scanning, and barcode reading capabilities.
This model is a significant upgrade from its predecessor HERM-1000, having been reborn with an improved pickup mechanism, more precise drive control, enhanced recognition performance, and user-friendly software.
To ensure accuracy, the product incorporates a side CIS (Contact Image Sensor) to provide an envelope double detection function. For user convenience, it supports a 7-inch LCD touch panel and an audio guidance function.
In terms of performance, the machine can handle up to max 50 envelopes per batch and rapidly processes high volumes of return envelopes at a speed of over 100 per minute. Furthermore, it is designed for system scalability, allowing it to be interlinked with a handheld barcode reader.
Features
Improved mechanism and enhanced recognition performance compared to the 1st generation model
Automatic envelope feeding, scanning, and barcode reading capability
50-envelope loading and stacking capacity
Processing speed of over 120 envelopes per minute
Envelope double-feed detection via CIS (Contact Image Sensor)
7-inch LCD touch panel
Audio guidance function support
Interlink with an external barcode reader

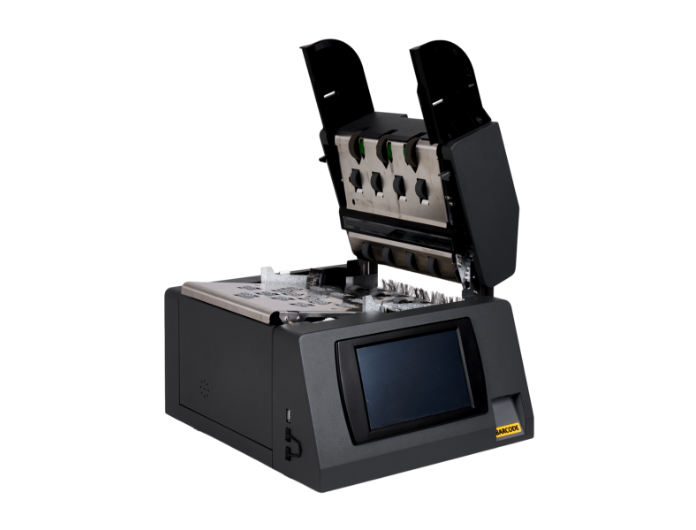

Top-opening structure for convenient maintenance
Specifications
| Scanner | |
|---|---|
| Image Sensor | CIS (Contact Image Sensor) |
| Image Resolution | 200dpi |
| Image Output | 8bit 256gray |
| Light Source | RGB |
| Scan Area | 120mm* 220mm (based on envelop specifications) |
| Speed | Max 120dpm (envelops) |
| Scan Size | Conforms to envelop specifications |
| Image Type | BMP (only for recognition area) |
| Others | |
|---|---|
| Hopper Capacity | Max 50 envelops |
| Stacker Capacity | Max 50 envelops (Free air) |
| Number of Stacker | 1 Pocket |
| Double Detection | Yes, detection based on image (Double/Long Note/Short Note) |
| Pickup Mechanism | ADF and Retard Type |
| Recognition | Barcode (based on envelop specifications) |
| External Data Output | Output from External USB Memory |
| Audio Guidance | Yes |
| Interface & Power | |
|---|---|
| OS & Controller | Windows CE based PC controller |
| Display | 7 inch Touch LCD |
| Recognition | Linux based BCR engine |
| USB Connectors | 3 |
| S/W interface to Controller | Embedded Linux |
| Power | Free Voltage (100V~240V, 50/60Hz) |
| Physical | |
|---|---|
| Dimension | 339mm(W) X 260mm(H) X 368mm(L) |
| Weight | 12kg (approx) |
| Option | |
|---|---|
| Storage Box | Reinforced PP carrying box |
