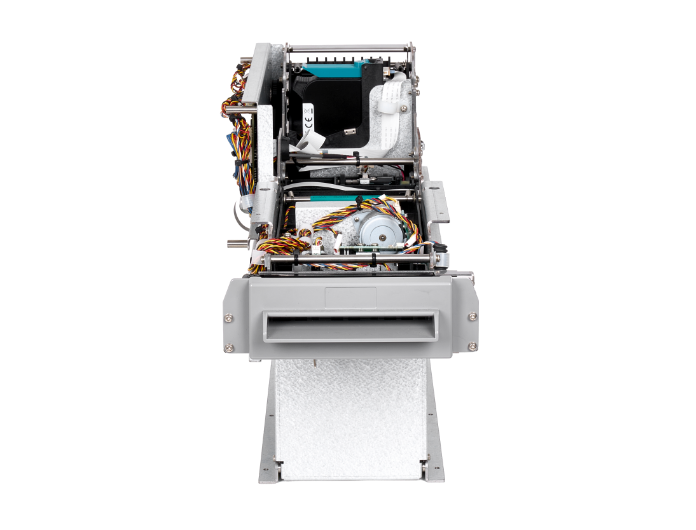

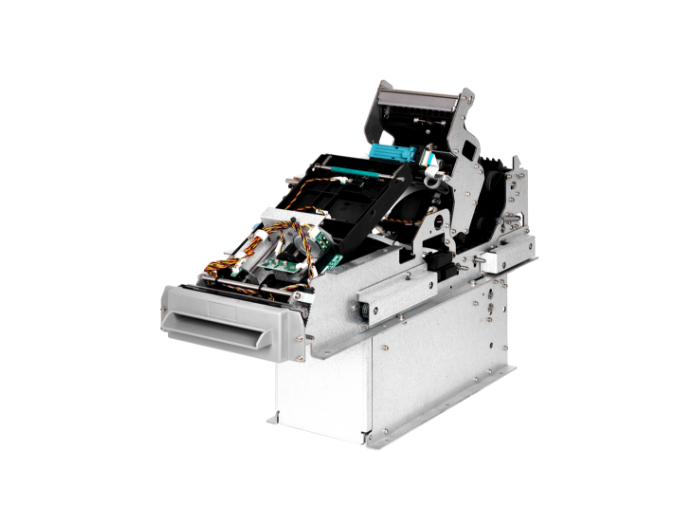

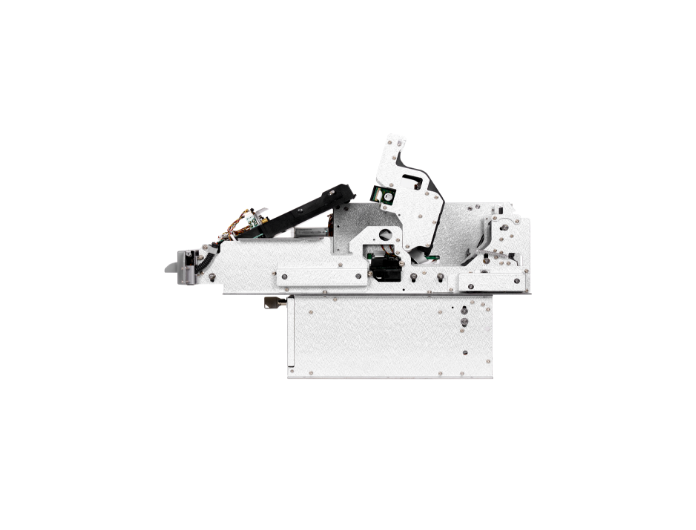

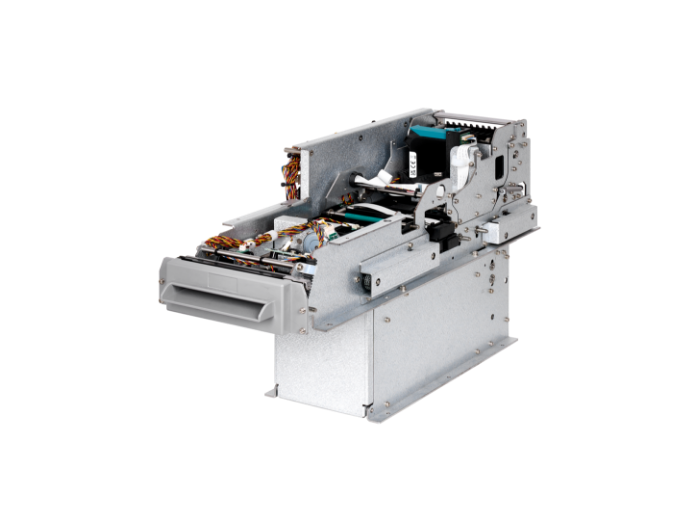

Check Processing Module HDX-3000
Excellent check processing module for kiosks, boasting superior quality and outstanding performance
This product is optimized for kiosks that accept valuable documents, such as checks and vouchers. It guarantees accurate and stable operation with its high-resolution 200 dpi color scanning, double-feed detection and auto alignment. The model features a High-speed USB 2.0 interface, with standard support for MICR (E13B & CMC7) and the ability to endorse up to 4 lines or more.
Features
Optimized module for kiosks that accept valuable documents such as checks and vouchers
200 dpi gray and color scanning
Double-feed detection
Single pickup and single feed structure
High-speed USB 2.0 interface
MICR supported by default (E13B & CMC7)
Supports max 4 lines of endorsement
Compact and slim design
Maximum 500-checks capacity stacker (Option)
Specifications
| Scanner | |
|---|---|
| Image Sensor | Dual CIS (Contact Image Sensor) |
| Optical Resolution | 300dpi |
| Image at Mono mode | 200dpi, 300dpi |
| Image at Color mode | 200dpi |
| Image depth | B/W, 16 & 256gray, 24bit color, UV image (HDX-3000U) |
| Scan Height (Width) | Max 108mm (Min 65mm) |
| Scan Length | 127mm(min) ~ 225mm(max) |
| Speed (duplex) Mono | 600mm/sec at 200dpi single feed/duplex |
| Speed (duplex) Color | 500mm/sec at 200dpi single feed/duplex |
| Image Type | bmp / jpg, tiff (compressed in PC) |
| MICR Reader | Yes |
| OCR | Aarranged by application side |
| Automatic Skew Aligner | Yes |
| Double Detection | Yes (Ultra sonic) |
| Inlet Detection | Yes |
| Skew Detection | Yes |
| Auto Crop | Yes |
| Endorsement | Max 4 lines |
| Auto Stamp | Logo, Image, VOID mark |
| Printer location (timing) | After or Before Scanning Selectable on AP |
| Stacking Type | Free Air |
| Stacker Capacity | Option (Max 500 checks) |
| Hoper Capacity | Single Loading |
| Inlet Shutter | YES (automatic) |
| Interface & Power | |
|---|---|
| Communication | High speed USB 2.0 |
| Software Development Kit | Hantle API |
| OS | Win 7, Win 10, Win 11 (32bit and 64bit) |
| Power | DC 24V |
| Physical | |
|---|---|
| Dimension | 156mm(W) *148mm(H) *527mm(D) |
| Weight | 6kg (approx) |
| Environment (in operation) | Temperature: +5 °C to +45 °C / Humidity: 30 % to 70 % |
| Technical Support | |
|---|---|
| Protocol Specifications | Yes (Manual guidance) |
| SDK | Yes (API and manual guidance) |
| Others | Test Program, Dimension Drawings, SDK manual |
