Cash Dispenser HCDM-PT/PTS
The ultimate model designed for market needs.
Proven track record in international markets with foreign currency exchange kiosks.

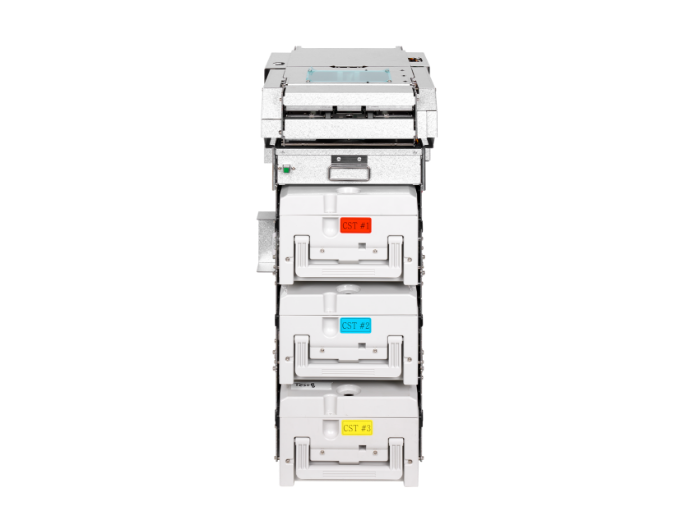

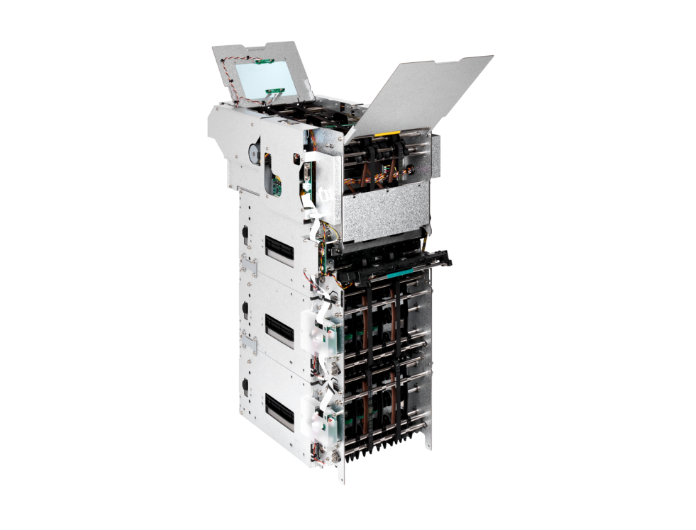

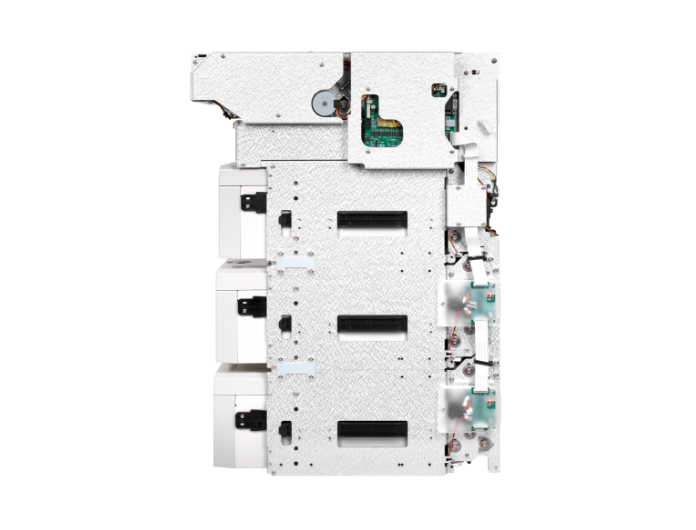

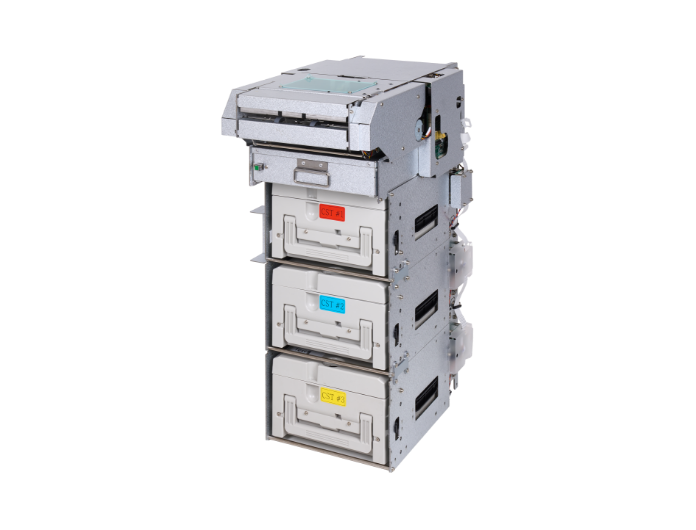

This presenter type dispenser is designed with a cassette-type and front-access structure for easy maintenance. It can hold up to 2,000 banknotes and dispenses them at a rapid speed of 4 notes per second. With a reject capacity of up to 100 notes, the system also supports cassette expansion for up to 6 denominations, allowing it to handle a variety of currencies.
We can confidently say this is a top-tier product that meets market demands, particularly with its retract function which helps prevent user errors. Also available various currencies, including USD, JPY and EUR, and provides an even more effective kiosk solution with its optional image scanning function.
HCDM-PT-1K/PT-2K : Standard Dispenser Model
HCDM-PTS-1K/PTS-2K : Standard Model with Image Scanner
Features
Cassette-Type Structure
Front-Access Maintenance
Selectable Structure 1K and 2K Cassette
Optional External Shutter
Up to 2,000 Notes per Cassette Capacity
Up to 100 Notes Reject Capacity
4 Notes/sec Dispensing Speed
Supports KRW, JPY, USD, EUR, CNY, INR, IDR etc
Cassette Expansion: Up to 6 Denominations
Image Scan Function (Option)
XFS supports
Specifications
| General | |
|---|---|
| CDU Type | Cassette type |
| Maintenance | Front service type |
| Note Loading | Direct loading into cassette |
| Bundle Presenter | Yes |
| Max Dispensing Notes | Max 100 notes |
| Dispensing Speed | Max 4 notes/sec |
| Cassette capacity | Max 2,000 notes(HCDM-PT-1K) Max 1,000 notes(HCDM-PT-2K) selectable with 1K and 2K cassette |
| Reject Box Capacity | Max 100 notes |
| Scanning Device | Dual CIS option (only Korean domestic market) |
| Available Notes | KRW, JPY, USD, EUR, CNY, INR, IDR etc |
| Detection | Double (ultra sonic) / Skew / Length / Folding |
| Feeding Mechanism | Dual timing belts feeding |
| Note Separation | Friction roller mechanism |
| Note Stacking | Escrow and bundle present |
| Cassette Locker | Yes |
| Shutter (External or Built-in) | Yes (optional external shutter) |
| Retraction for Forgotten Note | Yes (common to retract and reject) |
| Interface & Power | |
|---|---|
| Communication | RS-232C Async / High Speed USB 2.0 (image option only) |
| XFS Supports | Yes (version 3.1) |
| Power | DC24V, 2A~5A max (8 cassettes) |
| Physical | |
|---|---|
| Size (1cassette model) | 283mm(W)*309mm(H)*452mm(D) Height (H) increases by 154 mm per denomination. |
| Cassette Expansion | Up to 6 Cassettes |
| Weight (1cassette model) | Approx 8kg |
| Environment (in operation) | Temperature: +5 °C to +45 °C / Humidity: 30 % to 70 % |
| Technical Support | |
|---|---|
| Protocol Specifications | Yes (Manual guidance) |
| SDK | Yes (API and manual guidance) |
| Others | Test Program, Dimension Drawings, SDK manual |
