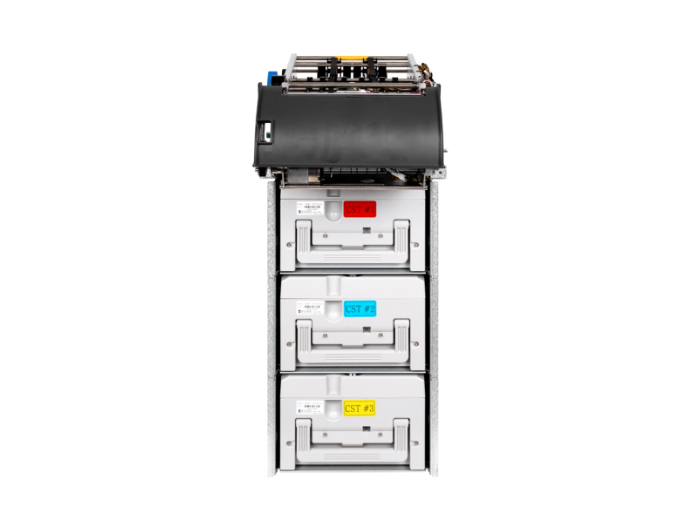

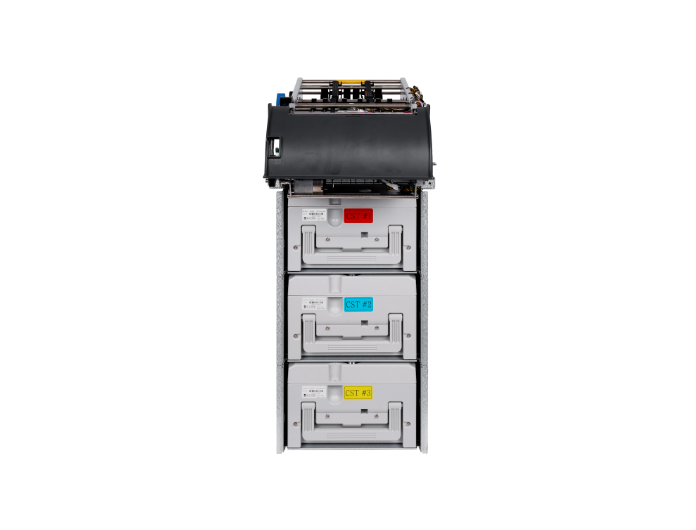

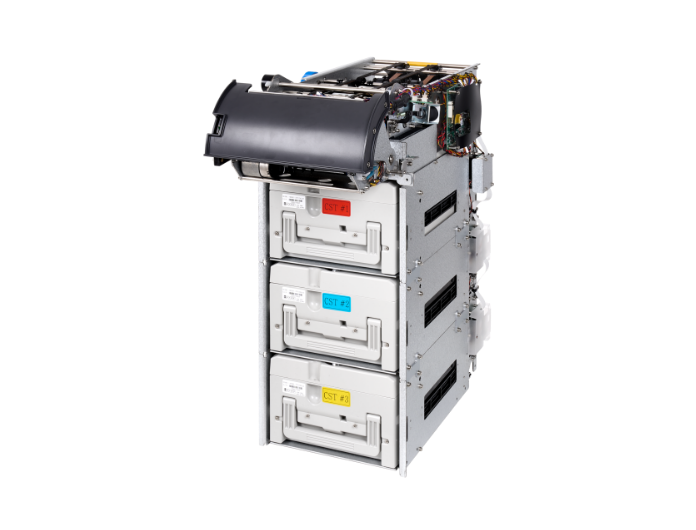

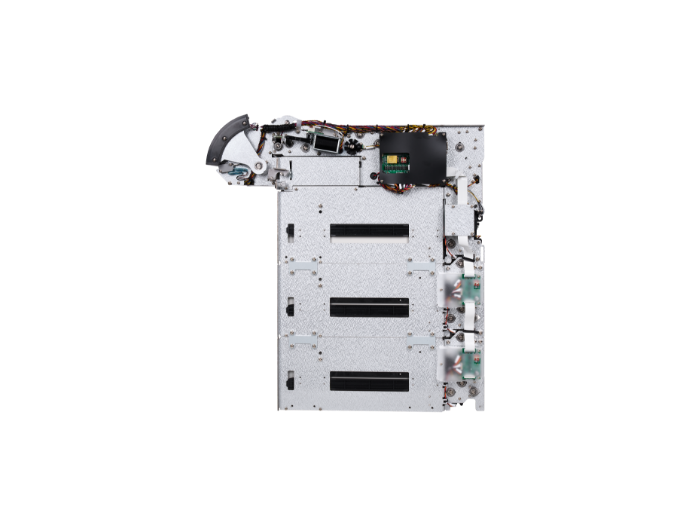

Cash Dispenser HCDM-20ST/20STS
The ideal choice for high-end kiosks. Enhanced security with built-in round shutter.
Designed with a cassette-type and front-access structure for easy maintenance, our product can hold up to 2,000 banknotes and dispense them at a rapid speed of 4 notes per second with built-in round shutter which can store forgotten notes. It also boasts performance with a reject capacity of up to 100 notes and can be expanded to handle a maximum of 6 cassette denominations, allowing it to manage various currencies with Kiosks.
The system processes not only KRW banknotes but also currencies like USD, JPY, EUR, offering a more efficient kiosk solution with an optional image scan function.
HCDM-20ST: Standard Dispenser Model
HCDM-20STS: Standard Model with Image Scanner
Features
Cassette-Type Structure
Front-Access Maintenance
Built-in Round Shutter
Up to 2,000 Notes per Cassette Capacity
Up to 100 Notes Reject Capacity
4 Notes/sec Dispensing Speed
Supports KRW, JPY, USD, EUR, CNY, INR, IDR etc
Cassette Expansion: Up to 6 Denominations
Image Scan Function (Option)
XFS supports
Specifications
| General | |
|---|---|
| CDU Type | Cassette type |
| Maintenance | Front service type |
| Note Loading | Direct loading into cassette |
| Bundle Presenter | Yes (Bundle collection after shutter open) |
| Max Dispensing Notes | Max 100 notes |
| Dispensing Speed | Max 4 notes/sec |
| Cassette capacity | Max 2,000 notes |
| Reject Box Capacity | Max 100 notes |
| Scanning Device | Dual CIS option (only Korean domestic market) |
| Available Notes | KRW, JPY, USD, EUR, CNY, INR, IDR etc |
| Detection | Double (ultra sonic) / Skew / Length / Folding |
| Feeding Mechanism | Dual timing belts feeding |
| Note Separation | Friction roller mechanism |
| Note Stacking | Spraying within the shutter |
| Cassette Locker | Yes |
| Shutter (External or Built-in) | Yes (Built-in round shutter) |
| Retraction for Forgotten Note | N/A |
| Interface & Power | |
|---|---|
| Communication | RS-232C Async / High Speed USB 2.0 (image option only) |
| XFS Supports | Yes (version 3.1) |
| Power | DC24V, 2A~5A max (8 cassettes) |
| Physical | |
|---|---|
| Size (1cassette model) | 277mm(W)*293mm(H)*548mm(D) Height (H) increases by 145 mm per denomination. |
| Cassette Expansion | Up to 6 Cassettes |
| Weight (1cassette model) | Approx 8kg |
| Environment (in operation) | Temperature: +5 °C to +45 °C / Humidity: 30 % to 70 % |
| Technical Support | |
|---|---|
| Protocol Specifications | Yes (Manual guidance) |
| SDK | Yes (API and manual guidance) |
| Others | Test Program, Dimension Drawings, SDK manual |
