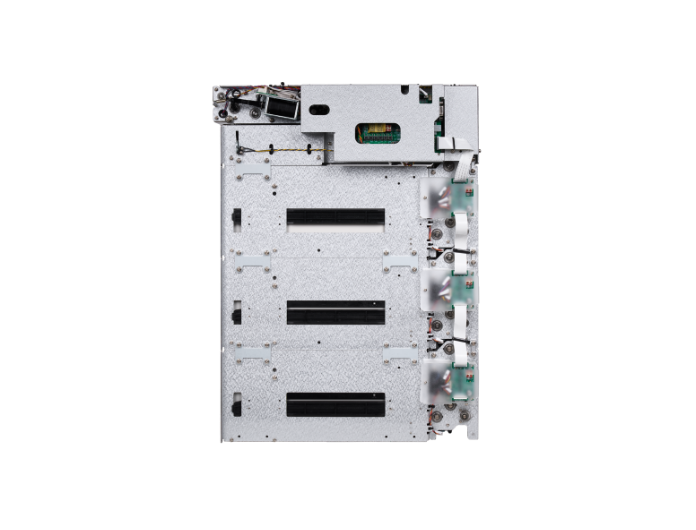

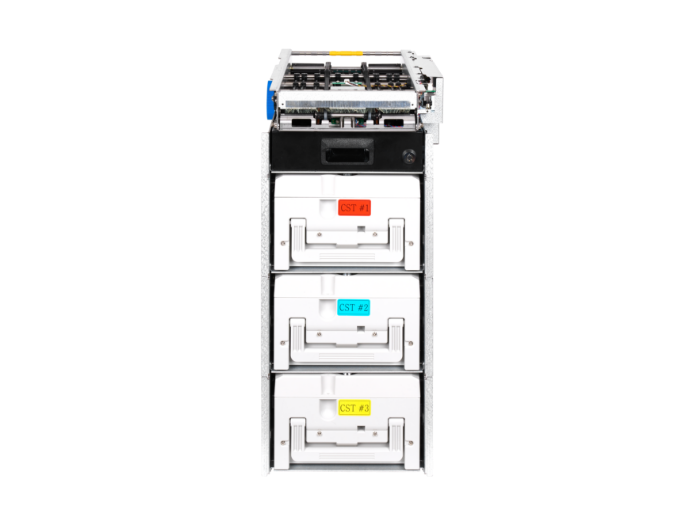

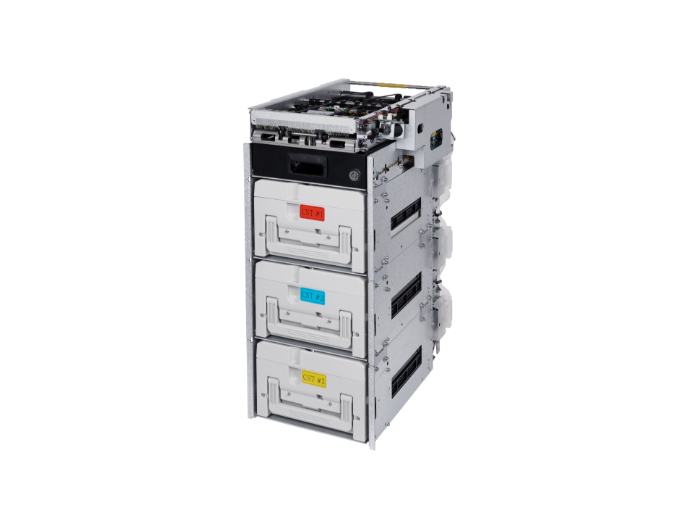

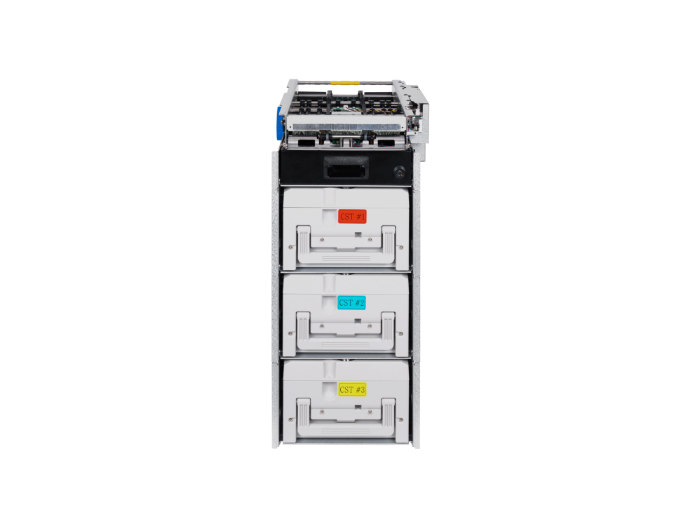

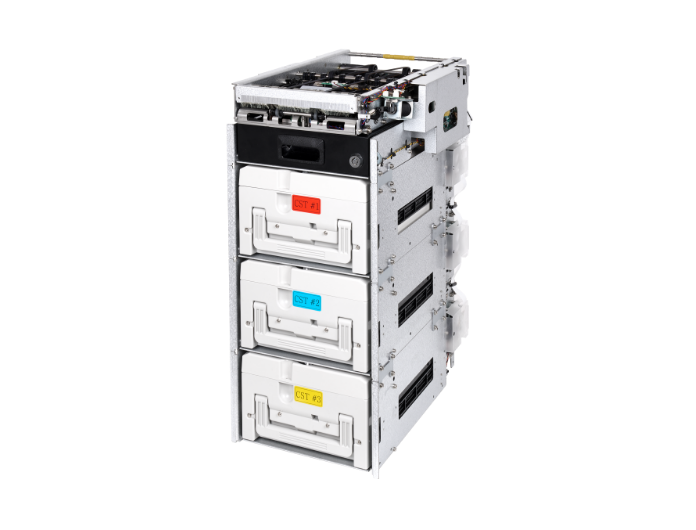

Cash Dispenser HCDM-20K/20KS
Basic but stable performance and excellent expandability
Designed with a cassette-type and front-access maintenance structure for easy upkeep, our product can hold up to 2,000 banknotes and dispense them at a rapid speed of 4 notes per second. It also boasts performance with a reject capacity of up to 100 notes and can be expanded to handle a maximum of 6 cassette denominations, allowing it to manage various currencies with Kiosks.
This is the system processing not only KRW banknotes but also currencies like USD, JPY, EUR, offering a more efficient kiosk solution with an optional image scan function.
HCDM-20K : Standard Dispenser Model
HCDM-20KS : Standard Model with Image Scanner
Features
Cassette-Type Structure
Front-Access Maintenance
Up to 2,000 Notes per Cassette Capacity
Up to 100 Notes Reject Capacity
4 Notes/sec Dispensing Speed
Supports KRW, JPY, USD, EUR, CNY, INR, IDR etc
Cassette Expansion: Up to 6 Denominations
Image Scan Function (Option)
XFS supports
Specifications
| General | |
|---|---|
| CDU Type | Cassette type |
| Maintenance | Front service type |
| Note Loading | Direct loading into cassette |
| Bundle Presenter | N/A |
| Max Dispensing Notes | Max 100 notes |
| Dispensing Speed | Max 4 notes/sec |
| Cassette capacity | Max 2,000 notes |
| Reject Box Capacity | Max 100 notes |
| Scanning Device | Dual CIS option (only Korean domestic market) |
| Available Notes | KRW, JPY, USD, EUR, CNY, INR, IDR etc |
| Detection | Double (ultra sonic) / Skew / Length / Folding |
| Feeding Mechanism | Dual timing belts feeding |
| Note Separation | Friction roller mechanism |
| Note Stacking | Free Air (Spray) |
| Cassette Locker | Yes |
| Shutter (External or Built-in) | N/A |
| Retraction for Forgotten Note | N/A |
| Interface & Power | |
|---|---|
| Communication | RS-232C Async / High Speed USB 2.0 (image option only) |
| XFS Supports | Yes (version 3.1) |
| Power | DC24V, 2A~5A max (6 cassettes) |
| Physical | |
|---|---|
| Size (1cassette model) | 293mm(W)*272mm(H)*422mm(D) Height (H) increases by 145 mm per denomination. |
| Cassette Expansion | Up to 6 Cassettes |
| Weight (1cassette model) | Approx 8kg |
| Environment (in operation) | Temperature: +5 °C to +45 °C / Humidity: 30 % to 70 % |
| Technical Support | |
|---|---|
| Protocol Specifications | Yes (Manual guidance) |
| SDK | Yes (API and manual guidance) |
| Others | Test Program, Dimension Drawings, SDK manual |
