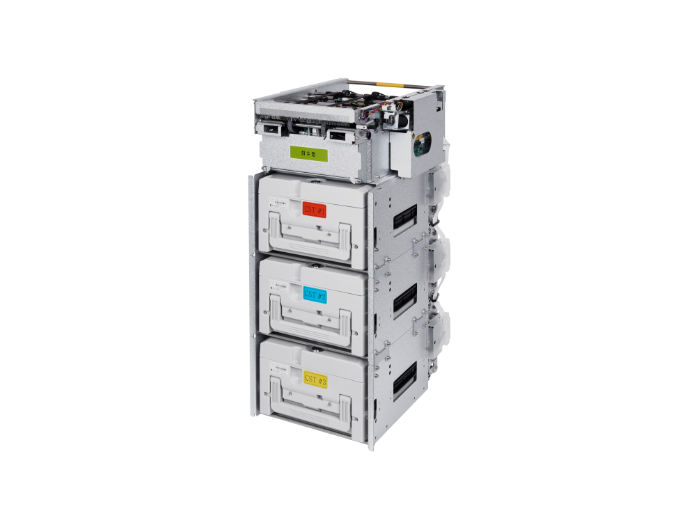

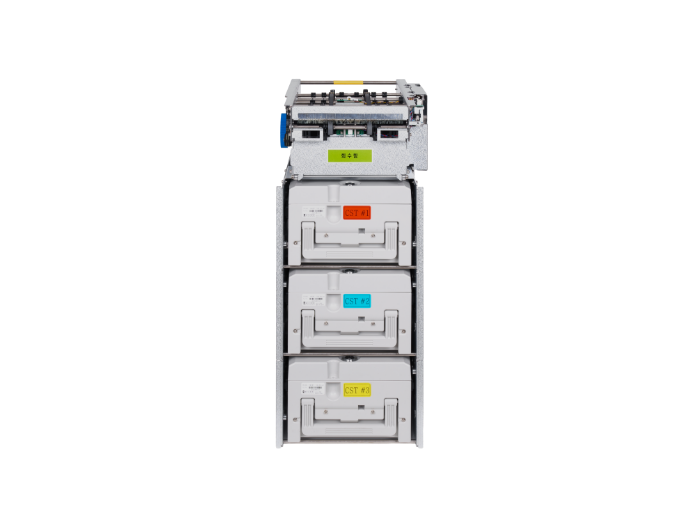

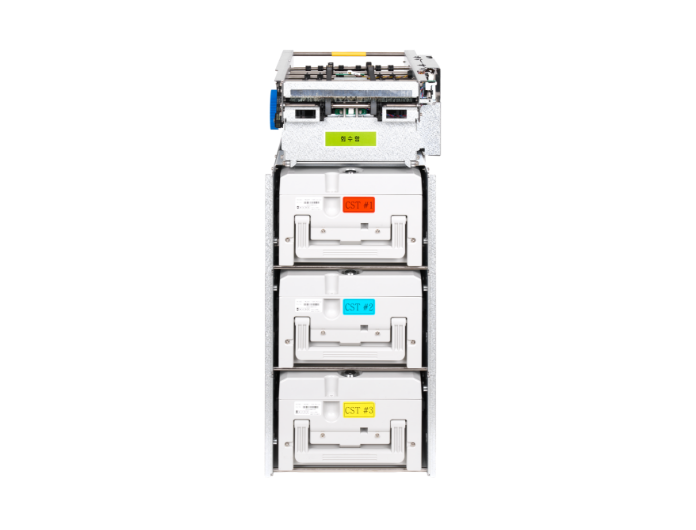

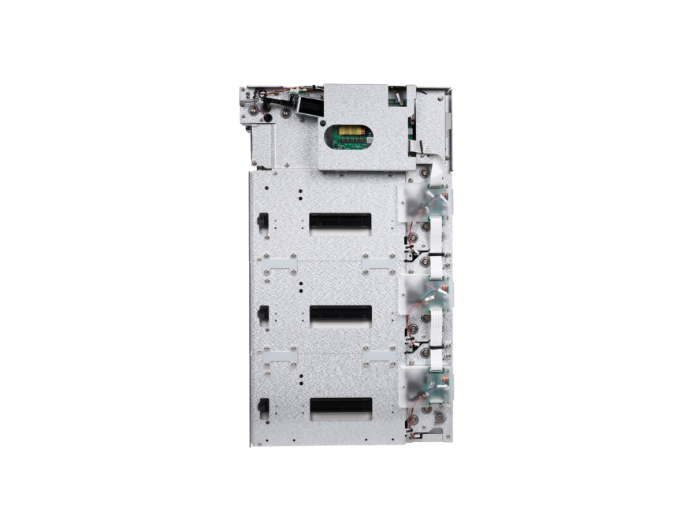

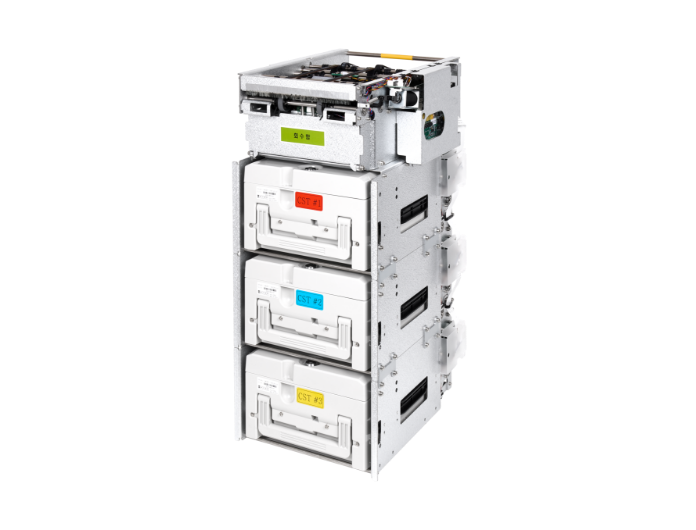

Cash Dispenser HCDM-10K/10KS
Built for essential functions, Reliable and versatile model for Self-Service Kiosks
Designed with a cassette-type and front-access maintenance structure for easy upkeep, our product can hold up to 1,000 banknotes and dispense them at a rapid speed of 3 notes per second. It also boasts performance with a reject capacity of up to 100 notes and can be expanded to handle a maximum of 6 cassette denominations, allowing it to manage various currencies with kiosks.
This is the right system processing not only KRW banknotes but also currencies like USD, JPY, EUR for versatile kiosks.
Features
Cassette-Type Structure
Front-Access Maintenance
Up to 1,000 Notes per Cassette Capacity
Up to 100 Notes Reject Capacity
3 Notes/sec Dispensing Speed
Supports KRW, JPY, USD, EUR, CNY, INR, IDR etc
Cassette Expansion: Up to 6 Denominations
XFS supports
Specifications
| General | |
|---|---|
| CDU Type | Cassette type |
| Maintenance | Front service type |
| Note Loading | Direct loading into cassette |
| Bundle Presenter | N/A |
| Max Dispensing Notes | Max 100 notes |
| Dispensing Speed | Max 3 notes/sec |
| Cassette capacity | Max 1,000 notes |
| Reject Box Capacity | Max 100 notes |
| Scanning Device | N/A |
| Available Notes | KRW, JPY, USD, EUR, CNY, INR, IDR etc |
| Detection | Double (ultra sonic) / Skew / Length / Folding |
| Feeding Mechanism | Dual timing belts feeding |
| Note Separation | Friction roller mechanism |
| Note Stacking | Free Air (Spray) |
| Cassette Locker | Yes |
| Shutter (External or Built-in) | N/A |
| Retraction for Forgotten Note | N/A |
| Interface & Power | |
|---|---|
| Communication | RS-232C Async / High Speed USB 2.0 (image option only) |
| XFS Supports | Yes (version 3.1) |
| Power | DC24V, 2A~5A max (6 cassettes) |
| Physical | |
|---|---|
| Size (1cassette model) | 286mm(W)*287mm(H)*351mm(D) Height (H) increases by 151 mm per denomination. |
| Cassette Expansion | Up to 6 Cassettes |
| Weight (1cassette model) | Approx 6kg |
| Environment (in operation) | Temperature: +5 °C to +45 °C / Humidity: 30 % to 70 % |
| Technical Support | |
|---|---|
| Protocol Specifications | Yes (Manual guidance) |
| SDK | Yes (API and manual guidance) |
| Others | Test Program, Dimension Drawings, SDK manual |
