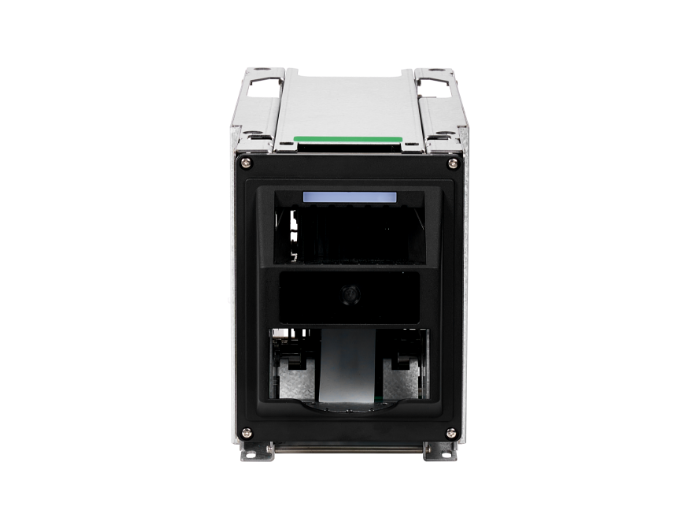

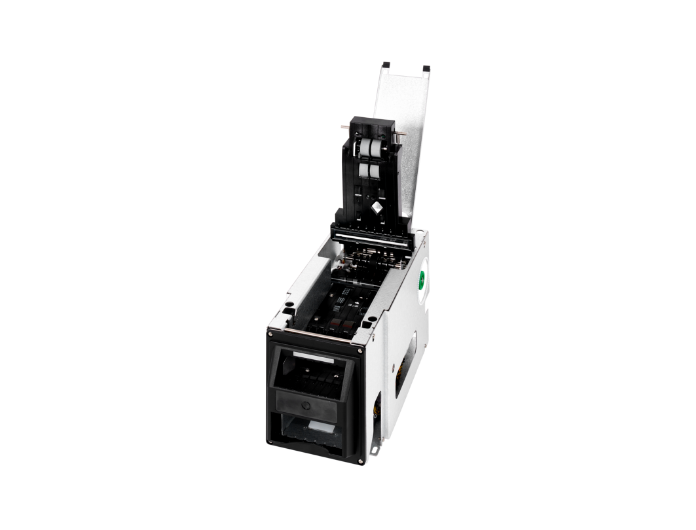

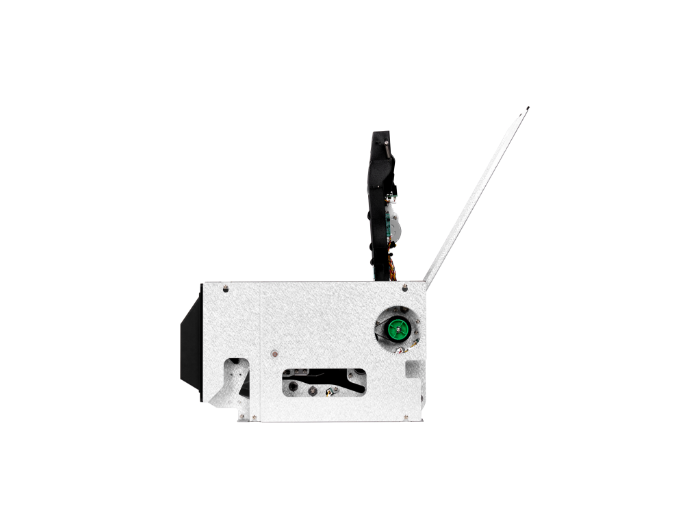

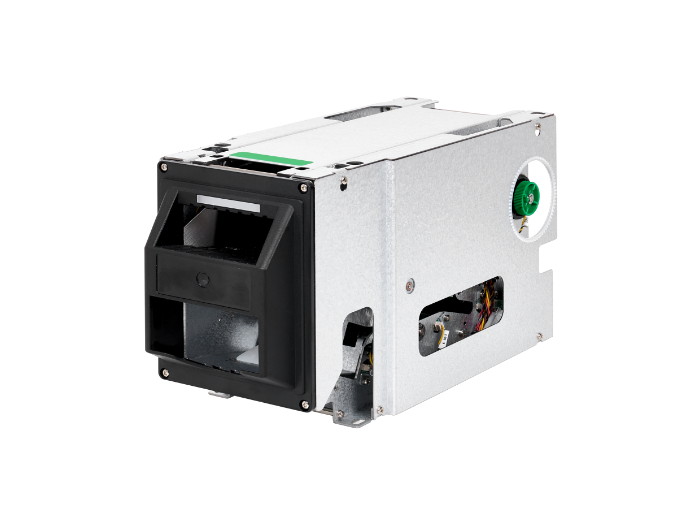

Cash Deposit Module – HAK 1
High-Performance Banknote Deposit Module with Compact Design and Outstanding Operational Stability
This is a high-performance kiosk deposit module that combines a compact design with outstanding stability, capable of processing up to 100 banknotes and vouchers, in a single batch to maximize efficiency.
The ultrasonic double-feed detection prevents document input errors, while its ability to store and transmit full images of the banknotes ensures transparent and accurate transaction recording.
Furthermore, the simplified internal structure makes maintenance exceptionally easy, and its optimization for the kiosk environment provides the highest operational efficiency.
Features
Optimized for kiosk applications and specifically designed for banknotes and vouchers.
Deposit Capacity: Up to 100 notes per transaction
Reject Capacity: Up to 100 notes
Free Air Stacking
Auto Inlet Shutter
Ultrasonic Double-Feed Detection
Full Image Storage and Transmission
Simple internal structure for easy maintenance
Specifications
| Scanner | |
|---|---|
| Product Type | High-performance deposit module |
| Accepted Dimension | Min 60~79mm(width) / Max 120~166mm(length) |
| Deposit Speed | 2 notes/sec |
| Deposit Direction | Short edge |
| Banknotes | KRW, JPY, Gift Ticket with Barcode (to be with other currencies) |
| Validation Sensor | Dual CIS (Contact Image Sensor) |
| Optical Resolution | 300dpi |
| Target Resolution | 100dpi, 200dpi |
| Light Source | RGB+IR |
| Max Deposit (1 time) Capacity | 100 notes |
| Max Reject Capacity | 100 notes |
| Max Escrow Capacity | N/A |
| Max Stack Capacity | N/A |
| Stacking Type | Mixed and Free air to bin |
| Double Feed Detection | Yes (Ultra sonic) |
| Inlet Shutter | Yes |
| Reject Shutter | N/A |
| Retract | N/A |
| Cassette Locker | N/A |
| Interface & Power | |
|---|---|
| Communication | Communication RS-232C / High speed USB 2.0 (for image) |
| Software Development Kit | Hantle API |
| OS | Win 7, Win 10, Win 11 (32bit and 64bit) |
| Power | DC 24V (50/60Hz) |
| Physical | |
|---|---|
| Physical | 156mm(W) *230mm(H) *320mm(D) |
| Weight | 6kg (approx) |
| Environment (in operation) | Temperature: +5 °C to +45 °C / Humidity: 30 % to 70 % |
| Technical Support | |
|---|---|
| Protocol Specifications | Yes (Manual guidance) |
| SDK | Yes (API and manual guidance) |
| Others | Test Program, Dimension Drawings, SDK manual |
